Full Text Article

Case Report

Aortic valve stenosis (AS) is the most common valvu- lar disease in the Western world, especially among individuals above 60 years of age [11. It is asscxiated with a high rate of death if untreated. Surgical aortic valve replacement (SAVR) is considered the gold-standard treatment for patients suffering from severe AS. However, SAVR is not feasible in approximately 30% of the patients, due to advanced age and multiple comorbid. ities 121. Complications such as cardiogenic shock and multiple organ dysfunction syndrome (MODS) pose a great challenge to SAVR, and lead to an operative mortality as high as 21% [31. Recently, interventional therapy such as transcatheter aortic valve implantation (TAVI) has provided an alternative option for these high-risk patients, 14-61 yet the feasibility for treating severe AS patients with cardiogenic shock and MODS has not been established. Herein, we presented an extremely severe AS case complicated with acute cardiogenic shock and MODSwho successfully saved by emergency TAVI with the assistance of in- tra-aortic balloon pump (IABP). Written consent was received from the patient for publication of this case report.

Case presentation

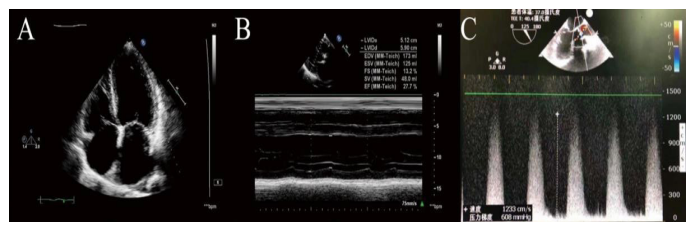

A 74-year-old male patient presented to the emergency department with progressive shortness of breath for several months. He also reported a harsh cough with occasional purulent sputum production. He had a history of AS, hypertension and coronary arterydisease. His AS and coronary artery disease were treated with conservative treatment. Physical examination revealed a 5/6 systolic murmur in aortic area and bilateral lower extremity edema. Transthoracic echocardiography (TTE) and Transesophagealechocardiogram (TEE) demonstrated an extremely severe AS with the aortic valve area (AVA) of 0.5 cm2, peak AV velocity of 12.33 m/s, peak transaortic pressure gradi- ent (PG) mmHg, a significantly decreased left ventricular ejection fraction (LVEF) of 27.7%, mild

mitral regurgitation as well as tricuspid regurgitation (Figure 1).

His condition deteriorated rapidly with conservative management. Acute cardiogenic shock, renal failure and respi- ratory failure developed after he was admitted to the cardio. vascular surgical unit. His vital signs were as follows: heart rate (HR) II lbpm, blood pressure (BP) 75/33 mm Hgt respiratory rate (RR) 24 bpm, and saturation of pulse oxygen (Sp02) 70%. 80%when given a reservoir bag mask of 6 L/min. LalX)ratory tests revealed BNP pg/ml, urea 28 mmol/l, serum cre- atinine 1750 gmol/l, AST 2373 IU/L, ALT 1788 IU/L, TB 131.7 gmol/l and DB emol/l. Arterial blood gas test showed pH 7.288, PC02 53 mmHg, P02 67 mmHg and BE -6.96 mmol/L The patient was transferred to the cardiac intensive care unit (CCU) after tracheal intubation, As his conditions deteriorat- ed. IABP was placed to improve coronary perfusion pressure in CCU.

The patient was then scheduled for TAVI with the as- sistance of IABP and high dose of epinephrine and norepineph- rine. In the hybrid operating room (OR), his baseline HR was BP was 80/40 mmHg, and Sp02 (Fi02 50%) was 92%. General anesthesia was induced

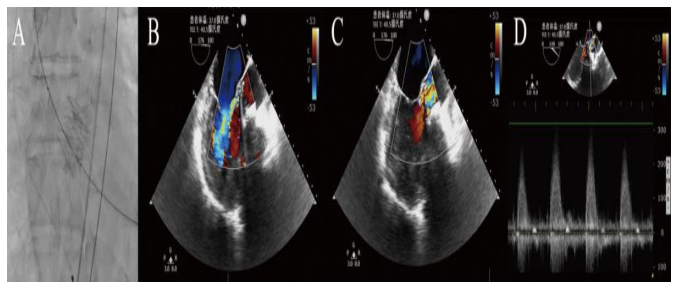

with 2 mg midazolam, 20 pg sufentanyl and 50 mg ro. curonium, and then maintained with 1-1.5% sevoflurane. A 25- mm SAPIEN transcatheter heart valve (Ed. wards Lifesciences) was deployed successfully through a transapical approach with the guidance of cinefluoroscopic and TEE (Figure 2). Immediately after deployment of the valve, the patientdemonstrated significant hemodynamic improvement and the peak AV veloc. ity dropped from 12.33m/s to 3.2m/s, with epinephrine reduced from 0.3 to O, I gg/kg/min and norepinephrine was reduced from 0.8 to 0.3 gg/kg,fmin The surgery lasted 120 minutes, and the whole prcxedure was smooth and uneventful. IABP was used intraoperatively to assist circulation.

No adverse cardiac events, e.g, cardiac arrest or malignant arrhythmia, occurred in the OR.

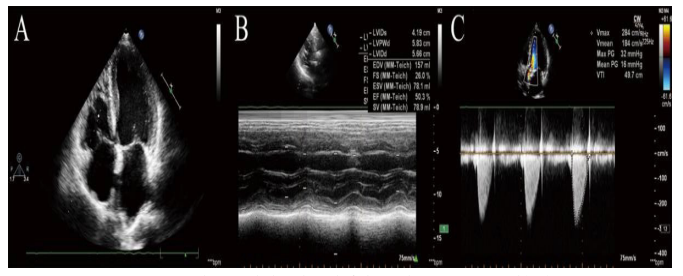

The patient was then transferred to CCU and carefully weaned off catecholamines. He was extubated two days later when BNP decreasing to 4667 Wm. The IABP was removed on the fourth postoperative day. Simultaneously. renal and re- spiratory function was gradually improved. lhe patient was discharged from hospital 1 1 days after surgery without anycom- plications. In the six-month follow-up, the patient's cardiac func- tion was improving fronNYHA class IV to II. Additionally, the ITE showed the mean transvalvular gradient and AVA were 16 mmHg and 1.4 cm2 respectively, and LVEF increased to 48% without any

inotropic agents support (Figure 3).

Discussion

Severe AS with acute cardiogenic shock and MODS are lethal and require prompt treatment 17-81. SAVR remains the first choice in younger or lower risk AS patients, yet critically ill elderly patients are at high-risk for SAV R [91. Therefore, TAVI has been increasingly recommended for the avoidance of car- diopulmonary bypass, traditional sternotomy and cardioplegia [9]. Nevertheless, the feasibility of TAVI for treating severe AS patients with acute cardiogenic shock and MODS has not established. In this article, we presented an extremely severe AS case with above complications, successfully resuscitated emer- gency TAVI under the assistant of IABP.

In our case, the patient was admitted with cardiogen- ic shock and MODS Following short.term conservative medi- cal management, his condition continued to deteriorate. Then, IABP was employed to enhanced myocardial perfusion and sup. port circulation as a bridging therapy to TAVI. IABP is inflated during diastole to enhanced myocardial perfusion, and deflat. ed during systole to reduce cardiac afterload. Moreover, IABP placement also permittedreduction in vasopressor requirements [101. Although using IABP in combination with VA-ECMO is a reasonable strategy for cardiogenic shock, the effective. ness of this combination remains controversial in patients with limited survival and is occasionally criticized for its high cost. 'Ihus, ECMO was not applied due to its specific complications (cardiac thrombosis and the coronary or cerebral hypoxia) and high cost in this case. Notably,the anesthetist played a critical role during the whole procedure. The anesthetist must be prepared to treat any sudden arrhythmias such as ventricular fibrillation or atrioventricular block, as a result of rapid ventricular pacing or manipulation of catheters within the heart. In this case, general anesthesia was used because it allows control of the procedure with a secureairway in completely immobile patient II 11. More importantly, general anesthesia allows the use of transesophageal echocardiography, which can provide important information perioperatively, In addition, a "titrate to effect" induction meth• od is necessary, and theanesthetics that do not rely on renal and liver function are better choice, Hypotension should be treated with vasoactive agents, followed by management of the underlying cause. 'Ihe main goal of intraoperative man. agement is to protect the failing heart and organby optimizing oxygen supply and decreasing oxygen demand, and excessive fluid infusion should be avoided except for unexpected massive bleeding. With the meticulous anesthetic management and IABP support, the whole TAVI prcxedure was smooth and uneventful In summary, TAVI is a realistic life-saving option for these pa- tients with severe AS and cardiogenic shock who would other- Wise encounter death. The development Of TAVI has allowed successful treatment for patients who were previously deemed too risky for SAVR, and bridging therapies such as IABP and vasopressors are important supplement treatments. However, ef- fects of TAVI remain to be established in such high.risk patients on long.term outcome.

Funding

This work was supported by the Sichuan University Huaxi Hospital Discipline Excellence Development 1.3.5 Project (2018HXFH046) and the Sichuan Provincial Scientific Grant (2017SZ0110).
